T3 Series Rotary Servo Actuator
Overview
T3 Series Overview

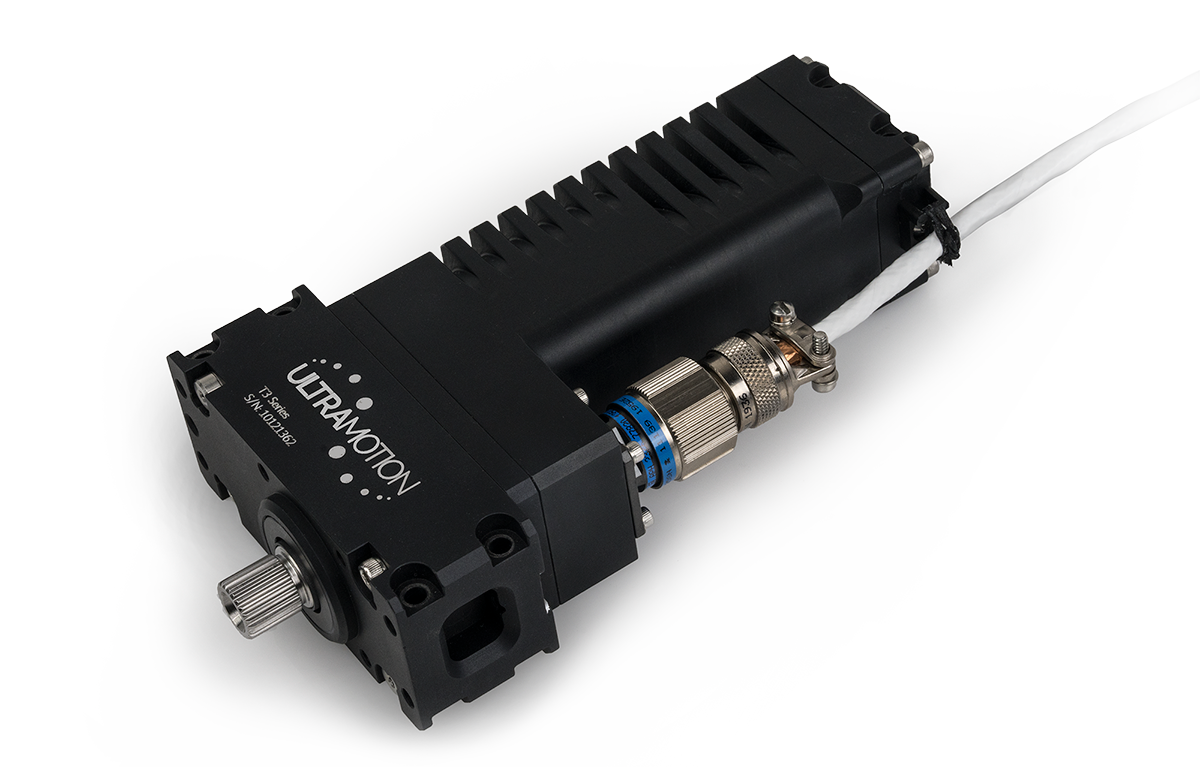

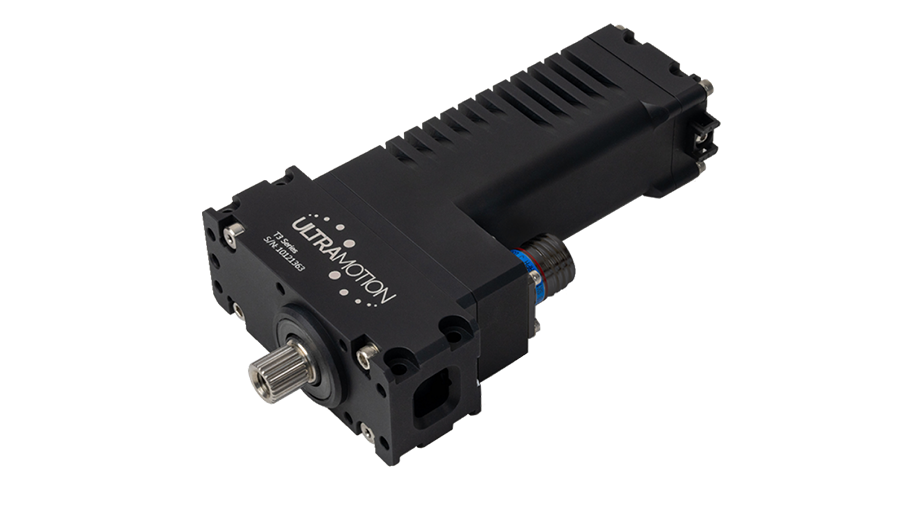

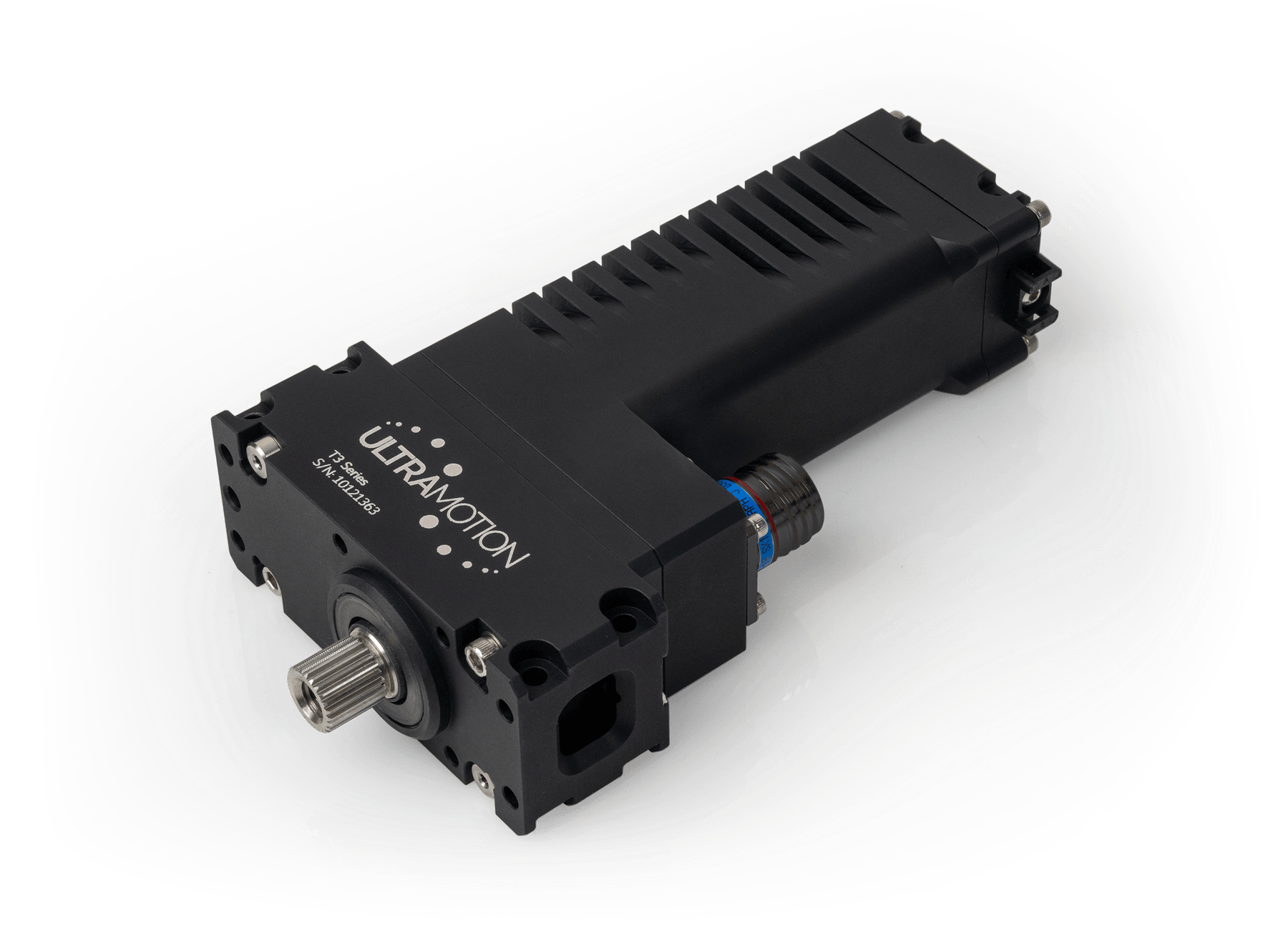

The T3 Series Rotary Servo Actuator is an advanced electromechanical actuator equipped with integrated brushless DC control electronics and contactless absolute position feedback. Its design focuses on dynamic operation in the most demanding environments, utilizing durable mechanical elements, top-tier materials, and best-in-class components.
At its core, the T3 Servo Actuator is powered by a high-power density Brushless DC (BLDC) motor, which is paired with a planetary gearhead to generate high torques in a compact package. This motor and gearhead assembly links to the servo’s output via a large spur geartrain for increased reliability.
Unlike the common industry practice of using compound spur gear trains, our unique gearing setup enhances the actuator’s capability to handle high transient loads without succumbing to structural failures.
Typical Applications:
- Aerospace, defense, industrial, and maritime applications requiring:
- Dynamic and reliable rotary servo actuation in harsh environments
- High power density and compact footprint
- Structurally robust design
- Integrated BLDC control electronics with CAN, serial, and RC PWM control options
- Pressure compensated oil-filled options for submerged use to 6000+ meters
- Uncrewed Aerial Vehicles
- Swashplate and tail-rotor control
- Fixed Wing Control Surfaces
- Utility Actuation
- Uncrewed Surface Vehicles
- Rudder control
- Accessory deployment
- Subsea vehicle control surface
- Subsea Valve Actuation
Features:
- Contactless single turn position feedback of the output shaft
- Built-in brushless DC control electronics
- Control options including CAN 2.0B, RS-485 serial, or RC PWM(optically isolated)
- Feedback includes absolute position, motor phase current, temperature, bus voltage, humidity, and actuator health
- 10 VDC to 36 VDC operating voltage range (60 VDC absolute max)
- -40°C to +100°C operating temperature range
- Robust mechanical components for high peak load tolerance and reliability
- High power density with extremely dynamic motion capabilities
- D38999/20ZB35PN connector
- IP67 sealing
- Fully conductive hardcoat anodized aluminum housing for EMI/EMC protection
- 17-4PH H1100 output shaft
- continuous rotation output shaft, electronically limited travel
Tech Specs
Tech Specs
| Specifications | |
|---|---|
| Operating Voltage | 10 to 36 VDC |
| Absolute Maximum Voltage | 65 VDC |
| Operating Temperature Range | -40 °C to +100 °C |
| Mass (T3M) | 2.65 lbm |
| Allowable Rotation | 360° electronically limited Continuous rotation modes possible |
| Peak No Load Speed @ 28 VDC | 500 °/s |
| Continuous No Load Speed @ 28 VDC | 310 °/s |
| Continuous Torque | 108 in-lbf |
| Intermittent Torque | 132 in-lbf |
| Peak Static Holding Torque | 172 in-lbf |
| Unpowered Backdrive Torque | 10 in-lb |
| Nominal Backlash | 0.6° |
| Communication Protocols | CAN 2.0B, RS-485 Serial, RC PWM *RC PWM not available on submersible models |
| Environmental Sealing | IP67 OR 10,000 PSI ON SUBMERSIBLE MODELS |

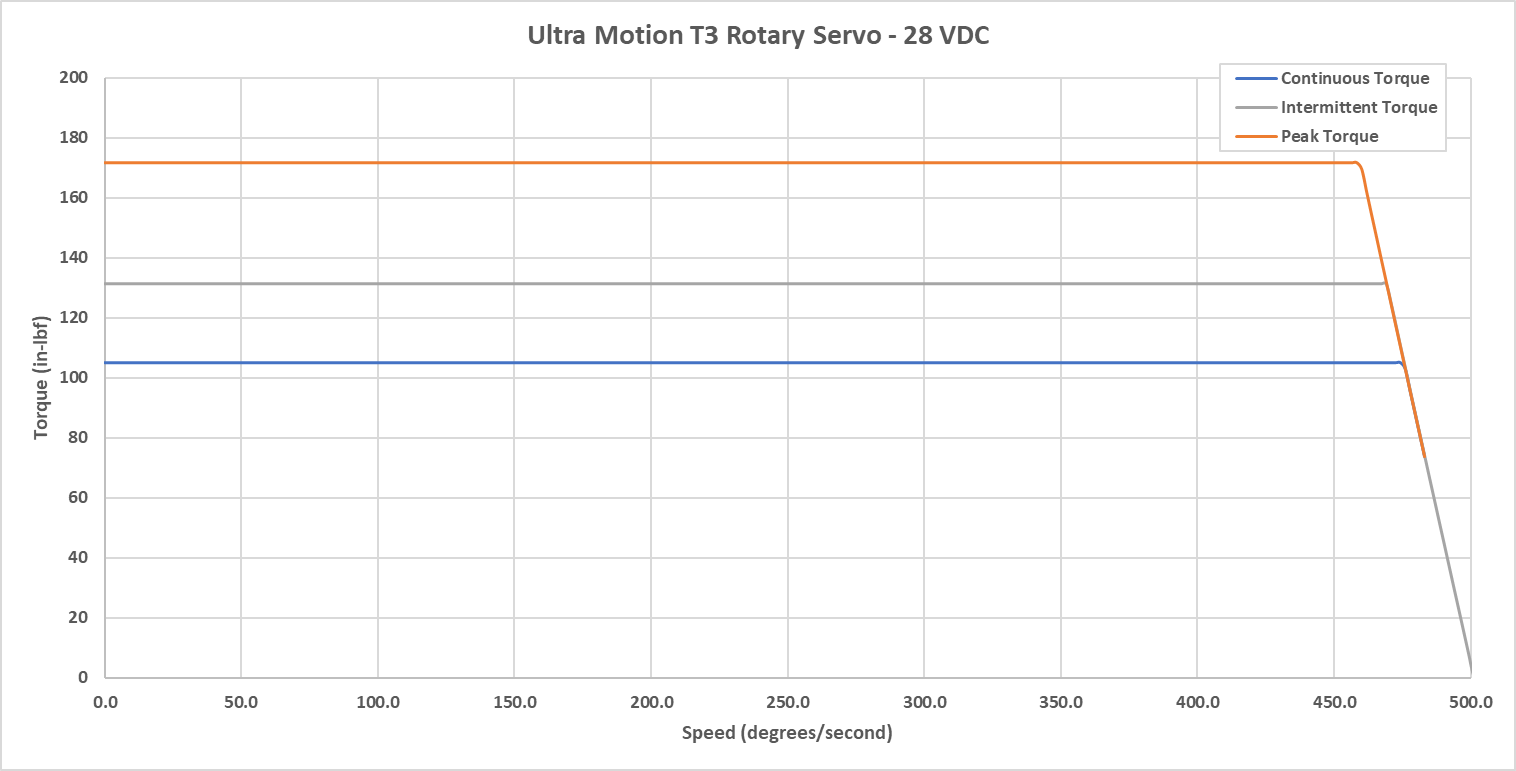

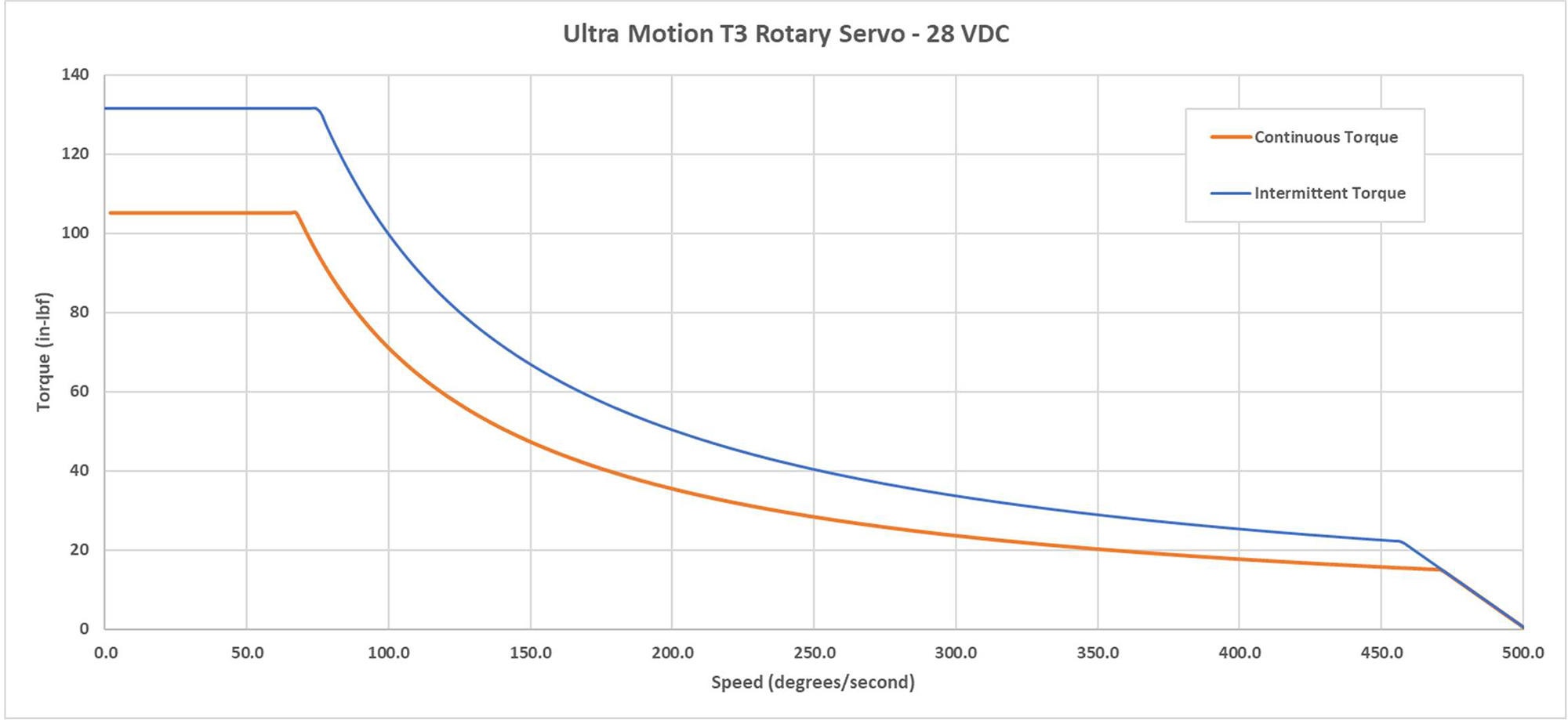

Performance
Continuous Torque: 100% duty cycle assuming 25°C ambient and natural convection
Intermittent Torque: 20% duty cycle
Peak Static Holding Torque: Non-repetitive peak static load capability without impacting service life
T3 Series Actuator Electrical Interface
D38999/20ZB35PN Connector
| Pin No. | Function | Flying Lead Color (CBL-T3-DEV) |
|---|---|---|
| 1 | CAN_L | BLUE |
| 2 | GND | TAN |
| 3 | GND | SLATE |
| 4 | V+ | PINK |
| 5 | V+ | VIOLET |
| 6 | DGND | ORANGE |
| 7 | RS-485 A | RED |
| 8 | RS-485 B | BLACK |
| 9 | DGND | WHITE |
| 10 | CAN_H | GREEN |
| 11 | OPTO COMMON CATHODE | BROWN |
| 12 | OPTO 1 ANODE | YELLOW |
| 13 | OPTO 2 ANODE | N/C |
| SHELL | CHASSIS | DRAIN |
Table 2: Pin numbers, functionality, and standard cable wire colors for T3 series actuators. Note that the “SHELL” pin refers to the metal connector casing.

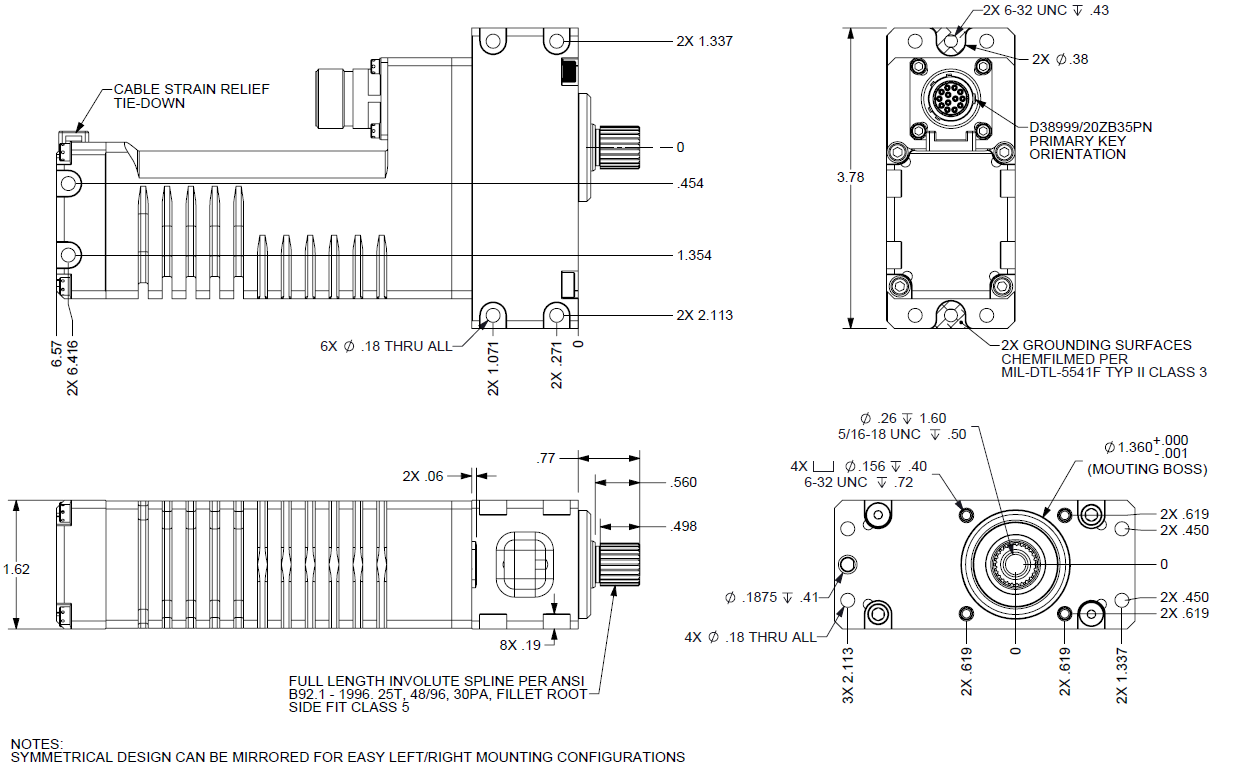

Dimensions
Dimensions
Accessories
Accessories

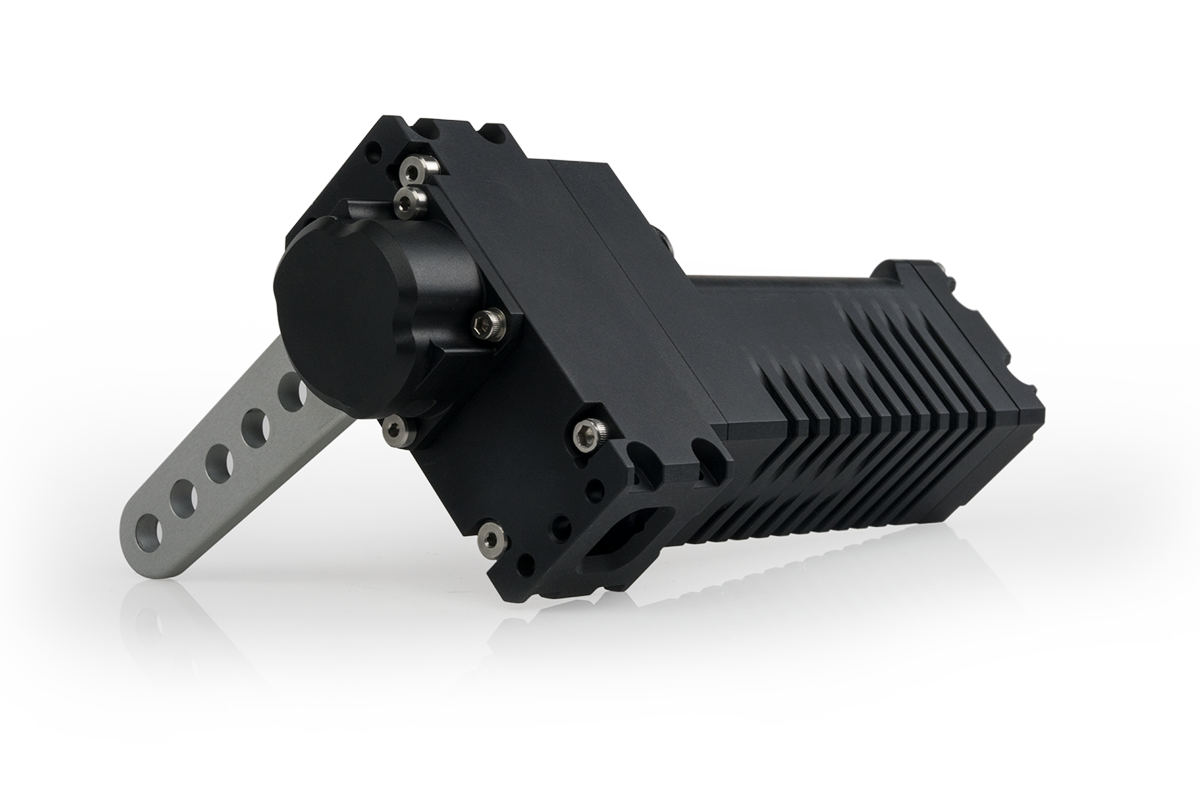

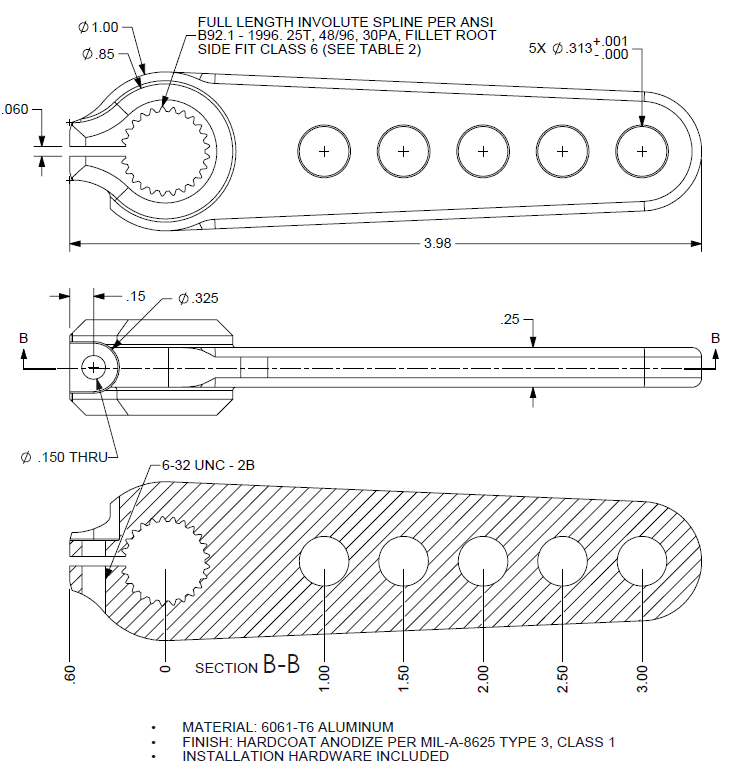

Control Arm

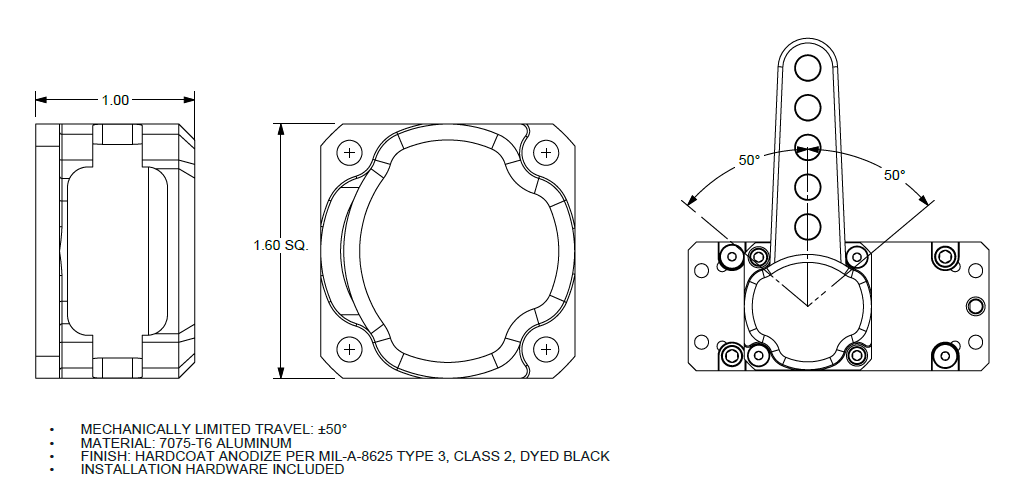

Rotational Hardstop
CBL-T3-DEV Cable Set
Development Cable Set: 10 foot length PVC cable terminated with 6″ flying leads, all pins populated. D38999/26FB35SN with M85049/38-11N strain relief backshells.

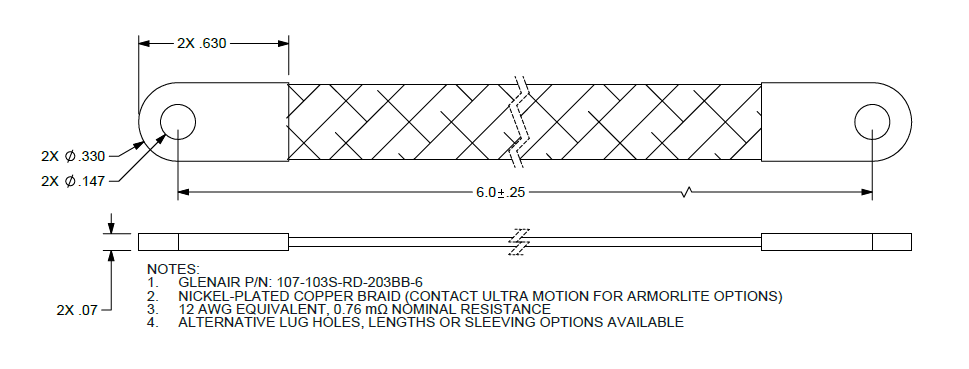

Grounding Strap
T3U Series

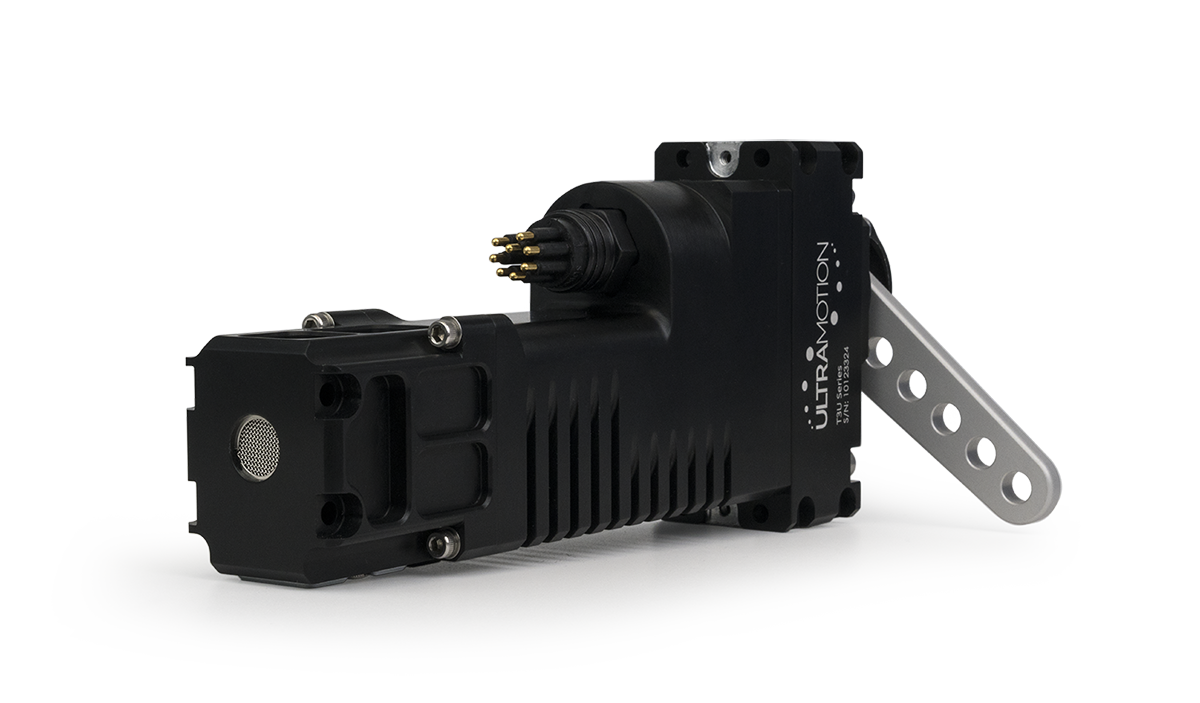

The T3U rotary servo actuator is an enhanced version of the T3, designed for reliable submerged operation at depths of 6000+ meters, ideal for subsea valve actuation and underwater vehicle control surfaces.T-Series
Customizations available.
Contact Ultra Motion engineering.
